Ultra Thin Self Bonding Wire , Awg 46 2UEW 155 0.04mm Enamelled Copper Winding Wire

Name: Ultra Thin Self Bonding Wire Awg 46 2UEW 155 004mm Enamelled Copper Winding Wire
Brand: Rvyuan
Price: 1 USD

Wholesale Ultra Thin Self Bonding Wire , Awg 46 2UEW 155 0.04mm Enamelled Copper Winding Wire from china suppliers

Brand Name : Rvyuan

Model Number : UEW

Certification : UL/RoHS

Place of Origin : China

MOQ : Different types with differet MOQ

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 200 Ton/Tons per Month

Delivery Time : 2-15 workding days

Packaging Details : Spool with carton

Thermal Class : 155/180C

Standard : JIS/IEC/NEMA

Insulation : UEW

Size Range : 0.04mm

Bonding layer : Hot wind/solvent

MOQ : 1KG

Color : Nature

Contact Now

ULTRA THIN SELF BONDIGN WIRE AWG 46 0.04MM ENAMELED COPPER WINDING WIRE

A special type of enamelled wire is selfbonding wire or bondable wire. Selfbonding wire is an enamelled wire as described under Enamelled Wire Types, with an additional adhesive enamel overcoat. This adhesive has a bonding feature, which is activated by heat or solvents. Once activated the adhesive bonds turn to turn windings into a compact self supporting coil. The use of selfbonding wire may offer cost and manufacturing advantages in some winding applications as bobbins, tape, varnishing, or impregnation may be eliminated.

Characteristics	Technical requests	Test Results
Characteristics	Technical requests	Sample 1	Sample 2
Surface	Good	OK	OK
Bare Wire Diameter	0.040±0.001	0.04	0.04
Coating Thickness	≥ 0.006 mm	0.011	0.01
Overall Diameter	≤ 0.052 mm	0.051	0.05
Conductor Resistance	≤ 14.433 Ω/m	13.736	13.768
Elongation	≥ 11 %	14	15
Breakdown Voltage	≥ 325 V	1178	1076
Pinhole Test	≤ 5 holes /5m	0	0
Test Items	Technical Requests	Results
Adhesive	Coating layer is good	OK
Cut-through	200℃ 2min no breakdown	OK
Heat Shock	175±5℃/30min no crack	OK
Solder Ability	390± 5℃ 2Sec Smooth	OK

Ultra Thin Self Bonding Wire , Awg 46 2UEW 155 0.04mm Enamelled Copper Winding Wire

Product Tags:

covered copper wire

flat copper wire

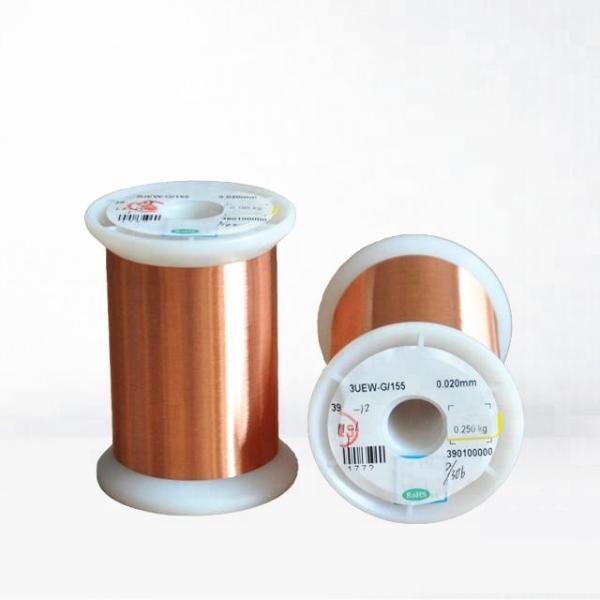

Ultra Thin Self Bonding Wire , Awg 46 2UEW 155 0.04mm Enamelled Copper Winding Wire Images
